Acoustic Material Testing Equipment - Selection Guide
คู่มือการเลือกอุปกรณ์ทดสอบวัสดุอะคูสติก
Introduction
Acoustic material testing equipment is essential for measuring sound absorption, transmission loss, and other acoustic properties of building materials. This guide covers the key equipment types, standards, and selection criteria for material characterization.
อุปกรณ์ทดสอบวัสดุอะคูสติกเป็นสิ่งจำเป็นสำหรับการวัดการดูดซับเสียง การสูญเสียการส่งผ่าน และคุณสมบัติอะคูสติกอื่นๆ ของวัสดุก่อสร้าง
Pro Tips
- 💡Define primary test standards before equipment selection
- 💡Consider sample size requirements - large samples need reverberation rooms
- 💡Impedance tubes excellent for R&D and quality control
- 💡Factor in room acoustic requirements and climate control
- 💡Training and expertise are critical - complex measurements require skill
- 💡Software capabilities important for analysis and reporting
- 💡Regular calibration and maintenance essential for accurate results
Technical Reference
The impedance tube (also called Kundt's tube) is the primary laboratory tool for characterising acoustic material properties — absorption coefficient, specific acoustic impedance, and normal-incidence transmission loss — without the expense of a reverberation room. The two-microphone transfer function method per ISO 10534-2 and ASTM E1050 is the industry standard. Key selection decisions: tube diameter (determines frequency range), microphone type and spacing, signal source (broadband noise or swept sine), and whether the system is for production QC or R&D.
Tube Diameter vs Frequency Range
Small diameter (29–36 mm): 200 Hz to 6.4 kHz. Suitable for thin foams, membrane absorbers, micro-perforated panels. Large diameter (100 mm): 50 Hz to 1.7 kHz. Suitable for thick mineral wool, automotive headliner, acoustic panels. Some labs maintain both tube sizes. The Norsonic Nor1527 is available in both configurations with a matched microphone pair.
Production vs Laboratory Use
For production QC, the impedance tube must cycle fast (< 30 seconds per test), integrate with automated handling, and provide pass/fail output without operator interpretation. Laboratory systems offer higher accuracy, multiple test configurations, and detailed data export for material databases. Placid Asia supports both configurations with appropriate automation interfaces.
Related Equipment
Recommended Products
NOR1205
Norsonic NOR1205 1/4″ Insert Voltage Preamplifier for Precision Acoustic Measurement
The Norsonic NOR1205 1/4″ Insert Voltage Preamplifier is a high-performance, professional-grade preamplifier specifically engineered for precision acoustic and sound measurement applications. Designed to deliver unmatched accuracy and consistency, the NOR1205 is an essential component used widely in professional acoustic testing, noise and vibration analysis, and environmental sound monitoring. Key Benefits: - Exceptional low noise floor and wide frequency response for precise sound level and vibration measurements. - Rugged, compact design to withstand demanding industrial and laboratory environments. - Compatible with all standard 1/4″ microphones for versatile testing setups. Technical Features and Specifications: - Frequency response: 4 Hz to 200 kHz, ensuring detailed measurement of both low- and high-frequency sounds. - Noise level: Typically below 2 nV/√Hz, offering reliable amplification with minimal signal degradation. - Input impedance: 10 MΩ to maintain microphone performance integrity. - Output impedance: 200 Ω for stable signal transmission. - Power supply: 24 V phantom power or external supply options. - Robust shielding for EMI/RFI noise reduction enhancing measurement fidelity. Applications: The NOR1205 is ideal for a broad range of acoustic and vibration testing environments including: - Building acoustics testing such as sound insulation and reverberation time measurements. - Environmental noise monitoring complying with international standards. - Noise, Vibration, and Harshness (NVH) analysis in automotive and aerospace industries. - Quality control in manufacturing environments requiring precise acoustic measurements. - Research and development labs focusing on acoustic material properties and sound power determination. Standards Compliance: The NOR1205 preamplifier complies with leading international standards including IEC 61672, ISO 3741 (sound power measurement), and ANSI S1.4, ensuring that your acoustic measurements meet strict professional and legal requirements. Target Audience: Engineers, acoustic consultants, environmental professionals, researchers, and laboratory technicians will find the Norsonic NOR1205 an indispensable tool for achieving high-accuracy acoustic measurements across various demanding industries. For reliable, professional acoustic preamplification, request a quote today and experience Norsonic’s uncompromising quality and precision.
NOR4553
Norsonic Nor4553 Adapter Cable for Precision Acoustic & Vibration Measurement
The Norsonic Nor4553 Adapter Cable (SKU: NOR4553) is a professional-grade accessory engineered to deliver precise performance in acoustic and vibration measurement systems. Designed and manufactured by Norsonic, a trusted brand in sound and vibration instrumentation, this adapter cable ensures reliable signal transmission critical for accurate sound level, vibration, and frequency analysis. Key Benefits: - High-fidelity signal integrity, minimizing noise and interference - Robust construction suitable for industrial environments - Compatible with a wide range of Norsonic measurement devices and third-party instruments - Facilitates precise diagnostics in machinery vibration, structural integrity assessments, and environmental noise monitoring Technical Features: - Shielded cable design for enhanced noise rejection - Durable connectors rated for repeated connect-disconnect cycles - Precision impedance matching to preserve measurement accuracy - Length options tailored for flexible setup in labs or fieldwork Applications: - Noise, Vibration, and Harshness (NVH) testing in automotive and aerospace industries - Building acoustics analysis, including sound insulation and reverberation studies - Environmental noise monitoring compliant with local and international regulations - Predictive maintenance and machinery diagnostics in manufacturing and process plants - Research and development in acoustics, structural engineering, and environmental science Standards Compliance: Built to meet international measurement standards including IEC 61672 for sound level meters and ISO 10816 for mechanical vibration. Ensures compatibility with ANSI standards commonly used in industrial and laboratory settings. Target Audience: Engineers, acoustic consultants, environmental scientists, researchers, and industrial maintenance professionals seeking a reliable, professional-grade connection solution to enhance measurement accuracy. Upgrade your measurement setup with the Norsonic Nor4553 Adapter Cable—engineered for consistency and precision in demanding acoustic and vibration applications. Contact us today to request a quote and optimize your sound and vibration measurement systems.
SOUNDINSIGHT-SONOCAT
Soundinsight Sonocat Portable Acoustic Measurement Device with Real-Time Analysis
The Soundinsight Sonocat is a portable, multifunctional acoustic measurement device designed for precise and real-time analysis of critical sound parameters such as absorption, intensity, and pressure. Engineered for professional and industrial-grade applications, the Sonocat offers reliable, accurate data capturing that meets the demanding requirements of acoustic material testing and noise vibration harshness (NVH) analysis. Key benefits of the Sonocat include its compact design, ease of use in field and laboratory environments, and the ability to deliver comprehensive acoustic insights instantly. Equipped with advanced sensors and intuitive software, this device supports sound level monitoring, vibration measurement, and frequency spectrum analysis, allowing users to identify noise sources, evaluate sound absorption efficiency, and monitor environmental noise pollution effectively. Technical specifications highlight its capability to measure a wide frequency range with high resolution, real-time data processing, and compliance with international standards such as IEC 61672 for sound level meters, ISO 16283 for building acoustics, and ANSI S1.4. The Sonocat’s robust build ensures durability in various industrial and research settings. The Sonocat finds extensive applications across diverse industries including automotive NVH testing, aerospace component vibration analysis, manufacturing quality control, building acoustics assessments, and environmental noise monitoring. Designed for engineers, acoustic researchers, consultants, and quality control specialists, this device enables precise acoustic diagnostics to improve product designs and ensure regulatory compliance. Request a quote today for the Soundinsight Sonocat to enhance your acoustic measurement capabilities and achieve superior sound analysis performance.
SPEKTRA-S-TEST-LAB
SPEKTRA S-TEST Lab – Precision Sensor Characterization System for Acoustic & Vibration Testing
The SPEKTRA S-TEST Lab is a professional-grade sensor characterization system meticulously engineered by SPEKTRA Dresden to deliver unmatched precision and reliability in acoustic and vibration measurement applications. Designed for engineers, researchers, and consultants working in diverse fields, this advanced equipment supports comprehensive sensor calibration and performance verification to meet the highest industry standards. Key benefits of the S-TEST Lab include accurate sound level and vibration measurement capabilities, frequency response analysis, and robust compatibility with various sensor types. Its precision electronics and durable construction ensure consistent results, making it ideal for rigorous testing environments. Technical specifications feature a wide frequency range suitable for detailed acoustic profiling, high signal-to-noise ratio ensuring data integrity, and compliance with international standards including IEC 61672 for sound level meters, ISO 16063 for vibration sensors, and ANSI specifications relevant to sensor calibration. This system is widely used across numerous applications such as Noise, Vibration, and Harshness (NVH) testing in automotive and aerospace industries, building acoustics evaluation for sound insulation and environmental noise assessments, and manufacturing quality control to verify sensor performance. It supports precise frequency analysis critical for R&D, environmental monitoring, and acoustic material testing. The SPEKTRA S-TEST Lab is engineered for professionals who demand reliability, repeatability, and conformance to global compliance standards. Whether you are involved in sensor development, quality assurance, or acoustic consultancy, this system provides the tools necessary to achieve exemplary measurement accuracy. Request a quote today to equip your lab with the SPEKTRA S-TEST Lab and raise the standard of your acoustic and vibration sensor testing capabilities.
NOR1527
Norsonic Nor1527 Impedance Tube for Accurate Acoustic & Vibration Testing
The Norsonic Nor1527 Impedance Tube is a premium professional-grade acoustic test system engineered for highly precise sound and vibration measurements. Designed to meet the rigorous demands of NVH (Noise, Vibration, and Harshness) testing, building acoustics, environmental noise analysis, and manufacturing quality control, the Nor1527 delivers reliable and repeatable measurement results. Built following international standards including IEC 60942 and ISO 10534, this impedance tube supports frequency analysis and sound absorption coefficient determination across a wide range of materials. Its robust construction and advanced design enable accurate impedance and acoustic performance testing under standardized laboratory conditions. Key features include: - Compliance with IEC, ISO, and ANSI acoustic testing standards - Precise sound pressure level and frequency measurement capabilities - Suitable for testing acoustic materials, absorbers, and barriers - High durability for industrial and research applications - Compatible with professional sound and vibration analyzers The Nor1527 is ideal for engineers, researchers, acoustic consultants, and quality control experts working in automotive NVH optimization, aerospace material testing, environmental noise monitoring, and building acoustics assessment. Its advanced measurement capability helps ensure compliance with regulatory acoustic standards and improves product development cycles. Invest in the Norsonic Nor1527 Impedance Tube to elevate your acoustic testing accuracy and efficiency. Contact us today to request a detailed quote and discover how this professional instrument can enhance your sound and vibration measurement capabilities.
PA-500-DM

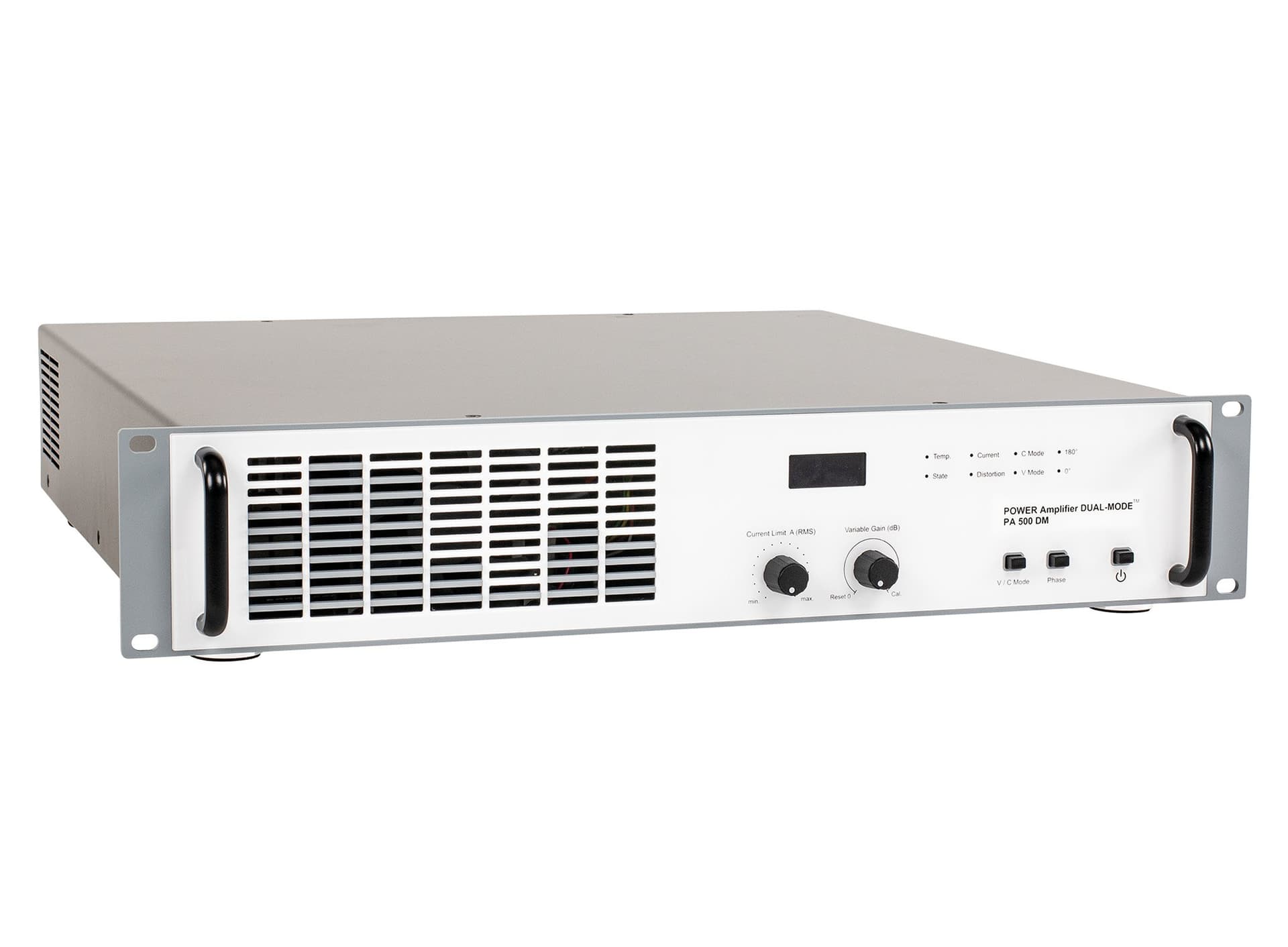

APS Dynamics PA-500-DM Power Amplifier 500VA Dual-Mode Voltage/Current
