Material Testing & Characterization
การทดสอบและจำแนกลักษณะวัสดุ
Acoustic material property measurement including absorption, transmission loss, and impedance testing.
การวัดคุณสมบัติอะคูสติกของวัสดุรวมถึงการดูดซับ การสูญเสียการส่งผ่าน และการทดสอบอิมพีแดนซ์
Typical Applications
Key Benefits
- •Characterize material properties
- •Optimize product designs
- •Verify supplier specifications
- •Support R&D projects
Relevant Standards
Our equipment complies with international standards for material testing & characterization.
Recommended Products for Material Testing & Characterization
4 products available for this application
NOR1527

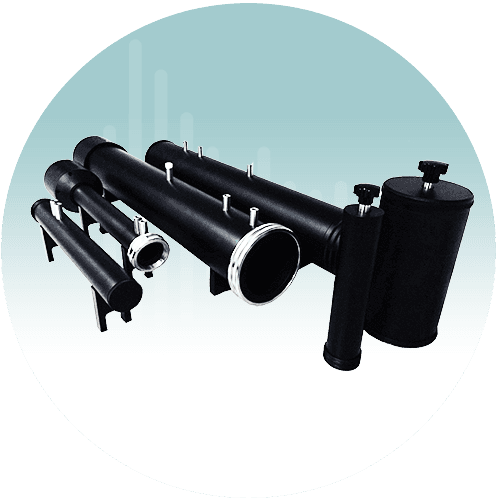

Norsonic Nor1527 Impedance Tube, 50-6400 Hz
The Norsonic Nor1527 impedance tube measures acoustic impedance, sound absorption coefficient and sound transmission loss from 50 Hz to 6400 Hz under room temperature and pressure. Two tubes are supplied: 100 mm for the 50-1600 Hz range and 30 mm for the 200-6400 Hz range. The system complies with ISO 10534-2 (transfer function method), ASTM E1050 and ASTM E2611 (four-pole transfer matrix method). It includes a 102.4 kS/s analyser with 100 dB dynamic range, GRAS measurement microphones (10 Hz to 20 kHz, 33-142 dB), a built-in 20 W power amplifier and a full-range 4 ohm loudspeaker. The software supports Johnson-Champoux-Allard-Lafarge material modelling, random-incidence absorption estimation, removal of tube attenuation, and export of poro-elastic material definitions to MSC Actran. The Nor1256 sound calibrator is available as an option. Placid Asia is the authorized Norsonic distributor for Thailand and ASEAN.
NOR1517A
Norsonic Nor1517A Airflow Resistance Measurement System for Acoustic Testing
The Norsonic Nor1517A Airflow Resistance Measurement System is a high-precision, professional-grade instrument engineered for advanced acoustic and vibration testing applications. Designed and manufactured by Norsonic, a global leader in acoustic measurement technologies, the Nor1517A delivers reliable and accurate airflow resistance data critical for evaluating sound absorption and transmission properties of materials. This system features a robust design that meets rigorous international standards, including IEC 60318-4 and ISO 9053, ensuring compliance and superior measurement consistency. Equipped with advanced sensors and precise calibration capabilities, the Nor1517A supports detailed frequency analysis, enabling users to assess airflow resistance across a broad range of acoustic materials with high repeatability and minimal measurement uncertainty. Key features of the Nor1517A include its modular build, user-friendly interface, and compatibility with Norsonic’s suite of acoustic measurement software, offering seamless integration into existing testing workflows. It is optimized for applications in noise, vibration, and harshness (NVH) testing in automotive and aerospace industries, quality control in manufacturing, building acoustics evaluations, and environmental noise monitoring studies. Engineers, researchers, acoustic consultants, and environmental specialists will find the Nor1517A an essential tool for material characterization and compliance testing. Its rugged industrial design ensures durability in laboratory and field environments alike. Request a personalized quote today to enhance your acoustic material testing capabilities with the Norsonic Nor1517A – engineered for precision, reliability, and professional excellence.
SOUNDINSIGHT-SONOCAT
Soundinsight Sonocat Portable Acoustic Measurement Device with Real-Time Analysis
The Soundinsight Sonocat is a portable, multifunctional acoustic measurement device designed for precise and real-time analysis of critical sound parameters such as absorption, intensity, and pressure. Engineered for professional and industrial-grade applications, the Sonocat offers reliable, accurate data capturing that meets the demanding requirements of acoustic material testing and noise vibration harshness (NVH) analysis. Key benefits of the Sonocat include its compact design, ease of use in field and laboratory environments, and the ability to deliver comprehensive acoustic insights instantly. Equipped with advanced sensors and intuitive software, this device supports sound level monitoring, vibration measurement, and frequency spectrum analysis, allowing users to identify noise sources, evaluate sound absorption efficiency, and monitor environmental noise pollution effectively. Technical specifications highlight its capability to measure a wide frequency range with high resolution, real-time data processing, and compliance with international standards such as IEC 61672 for sound level meters, ISO 16283 for building acoustics, and ANSI S1.4. The Sonocat’s robust build ensures durability in various industrial and research settings. The Sonocat finds extensive applications across diverse industries including automotive NVH testing, aerospace component vibration analysis, manufacturing quality control, building acoustics assessments, and environmental noise monitoring. Designed for engineers, acoustic researchers, consultants, and quality control specialists, this device enables precise acoustic diagnostics to improve product designs and ensure regulatory compliance. Request a quote today for the Soundinsight Sonocat to enhance your acoustic measurement capabilities and achieve superior sound analysis performance.
SOUND-PRESSURE-AND-SOUND-VELOCITY-SENSOR
Soundtec SOUND-PRESSURE-AND-SOUND-VELOCITY-SENSOR – Professional Acoustic Measurement, IEC Compliant
The Soundtec SOUND-PRESSURE-AND-SOUND-VELOCITY-SENSOR is a professional-grade acoustic sensor designed for highly precise sound pressure and sound velocity measurements. Engineered for industries requiring stringent acoustic and vibration analyses, this sensor provides accurate, reliable data essential for noise, vibration, and harshness (NVH) testing, building acoustics assessments, environmental noise monitoring, and manufacturing quality control. Featuring advanced piezoelectric and MEMS technology, this sensor captures a broad frequency range with excellent sensitivity, enabling detailed frequency analysis and vibration diagnostics. Its robust industrial design ensures stable performance even in harsh environmental conditions, meeting the rigorous demands of automotive, aerospace, construction, environmental consulting, and research sectors. Key technical features include a wide dynamic range, high signal-to-noise ratio, and fast response time, allowing real-time data acquisition with minimal latency. The sensor complies with international standards such as IEC 61672, ISO 1996, and ANSI S1.4, guaranteeing measurement accuracy aligned with global regulatory requirements. Applications extend across various fields: NVH testing in automotive and aerospace industries, sound quality assessments in building acoustics, industrial vibration analysis for predictive maintenance, and environmental noise compliance monitoring. The sensor’s compatibility with leading sound analyzers and data loggers enhances its versatility in professional settings. Engineers, acousticians, researchers, and environmental consultants will benefit from the Soundtec SOUND-PRESSURE-AND-SOUND-VELOCITY-SENSOR’s professional-grade reliability and precision. Backed by Soundtec’s commitment to quality and technical support, this sensor empowers users to deliver actionable insights and maintain stringent acoustic standards. Contact us today to request a quote and elevate your acoustic measurement capabilities with Soundtec’s top-tier sound pressure and sound velocity sensor.
About Acoustic Material Testing Equipment
Acoustic material characterisation determines the sound absorption coefficient (α), acoustic impedance (Z), and transmission loss of porous absorbers, foams, composites, and surface treatments. The transfer function method (ISO 10534-2 / ASTM E1050) uses a standing-wave impedance tube with two precision measurement microphones and a loudspeaker source. Small-tube systems (29 mm, 100 Hz–6.4 kHz) and large-tube systems (100 mm, 50 Hz–1.7 kHz) cover different frequency ranges. Placid Asia supplies the Norsonic Nor1527 impedance tube and SPEKTRA SQ-6 acoustic coupler for laboratory and end-of-line production testing.
Recommended Instruments
Norsonic Nor1527
Impedance tube system (large and small tube), includes microphones and analysis software
SPEKTRA SQ-6
Precision acoustic coupler for IEC 61094-5 secondary microphone calibration
PLACID Measurement Microphone Sets
Matched microphone pairs for two-microphone impedance tube measurements
Norsonic Nor150
Sound analyzer platform for impedance tube signal acquisition and FFT analysis
Applicable Standards
Frequently Asked Questions
What is the transfer function method for measuring sound absorption?
ISO 10534-2 describes the two-microphone transfer function method. A broadband signal is generated in the tube. The complex transfer function between the two microphone positions is used to calculate the normal-incidence sound absorption coefficient (αn) and acoustic impedance.
What tube diameter should I choose for my frequency range?
Small tubes (29–40 mm diameter) measure from ~200 Hz to 6 kHz. Large tubes (100 mm) extend down to ~50 Hz but are limited to ~1.7 kHz. The choice depends on the material's relevant frequency range and sample preparation constraints.
