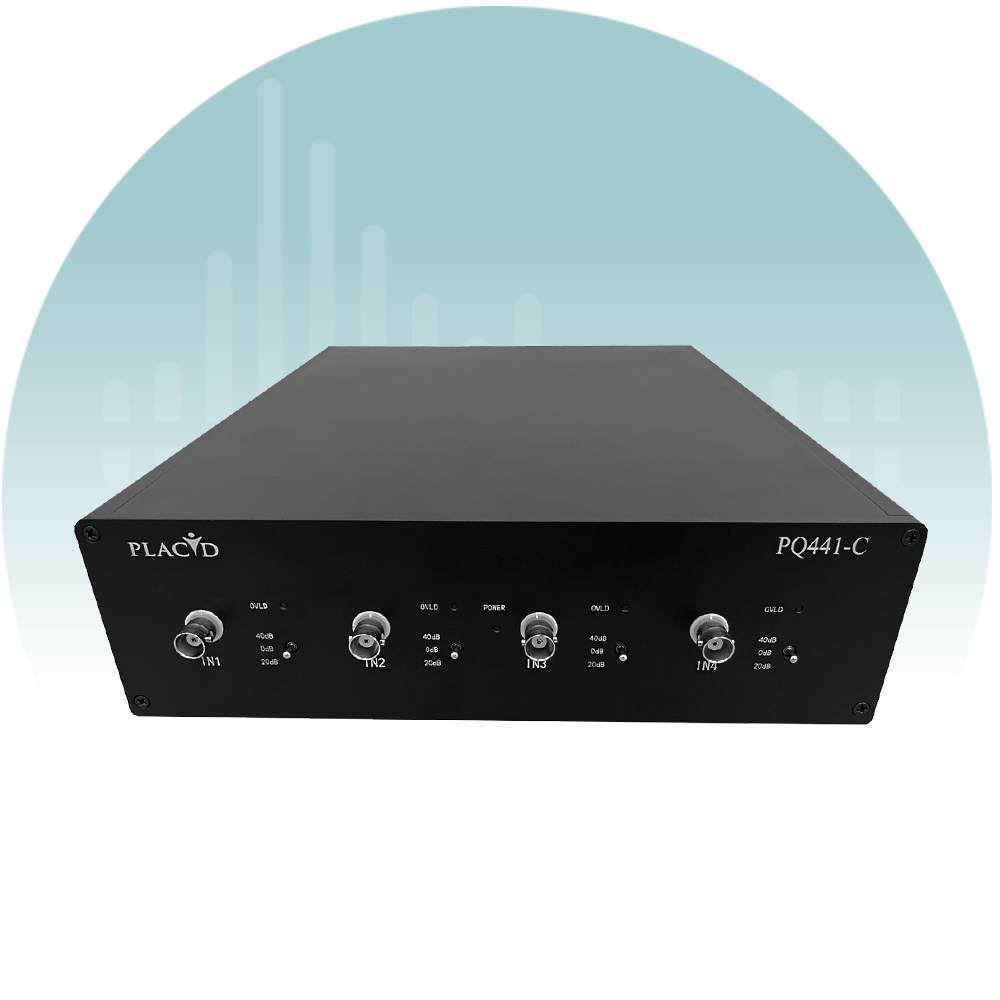

PQ441-C - 4-Channel Signal Conditioner DAQ
PQ441-C
The PLACID PQ441-C is a multi-channel signal conditioner featuring high sampling rate up to 88kHz.
Companion Software Included
Works seamlessly with PQ Analyst — advanced software for real-time FFT, spectrogram, octave analysis, and sound level measurement.
In-Depth Overview
The PLACID PQ441-C is a multi-channel signal conditioner featuring high sampling rate up to 88kHz.
Recommended Companion Software: PQ Analyst
Pair this DAQ device with PLACID PQ Analyst — an integrated software platform for real-time acoustic and vibration signal acquisition, visualization, and analysis. Together they form a complete measurement and analysis chain for R&D, university research, and industrial testing.
- Real-time FFT spectrum analysis up to the full bandwidth of your DAQ
- Spectrogram (waterfall) display for time-frequency visualization
- 1/1 and 1/3 octave band analysis per IEC 61260
- Sound Level Meter module (Leq, Lmax, Lmin, LN) per IEC 61672
- Data export to CSV for post-processing in MATLAB or Python
- Compatible with PQ401-A, PQ401-B, PQ441-C, and PQ1601
Interested in this product?
Get more information about pricing, availability, and technical support
