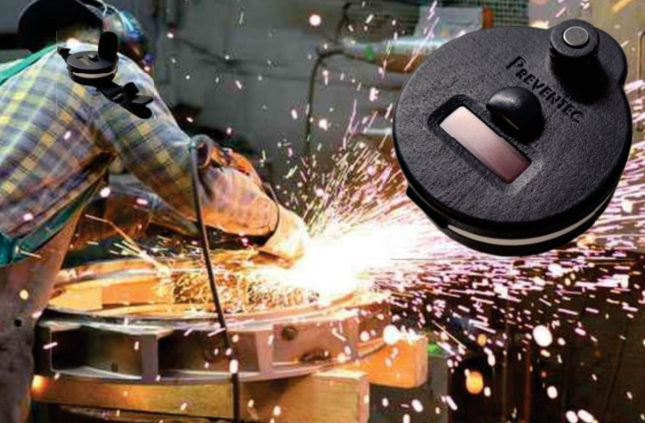

PLACID Angel Noise Dosimeter, IEC 61252
PLACID-ANGEL
The PLACID Angel is a personal noise dosimeter to IEC 61252 and ANSI S1.25, made in France. It measures 20 Hz to 16 kHz over a 50 to 120 dB range and reports LEX,8h and percentage dose, the quantities required for occupational noise exposure assessment to ISO 9612 and to Thai and ASEAN workplace reg...
In-Depth Overview
The PLACID Angel is a personal noise dosimeter to IEC 61252 and ANSI S1.25, made in France. It measures 20 Hz to 16 kHz over a 50 to 120 dB range and reports LEX,8h and percentage dose, the quantities required for occupational noise exposure assessment to ISO 9612 and to Thai and ASEAN workplace regulations. Battery life is 30 hours, so a full shift or a multi-day survey runs without recharging. Shoulder mounted and cable free, it does not interfere with the work being measured. Placid Asia is the authorized distributor for Thailand and ASEAN.
Typical Applications
Common use cases and application scenarios for this product
Key Features & Benefits
What makes this product stand out from the competition
Technical Specifications
Technical specifications and parameters
| Parameter | Specification |
|---|---|
| Alerts | Visual and/or audible |
| Function | Sound-level detection with user-set thresholds |
| Mounting | Shoulder-worn or desk placement |
| Warranty | 2 years |
| Battery Life | Up to 20 hours (rechargeable) |
| Data Logging | To PC via USB, data-retrieval software included |
| Module Weight | 50 g |

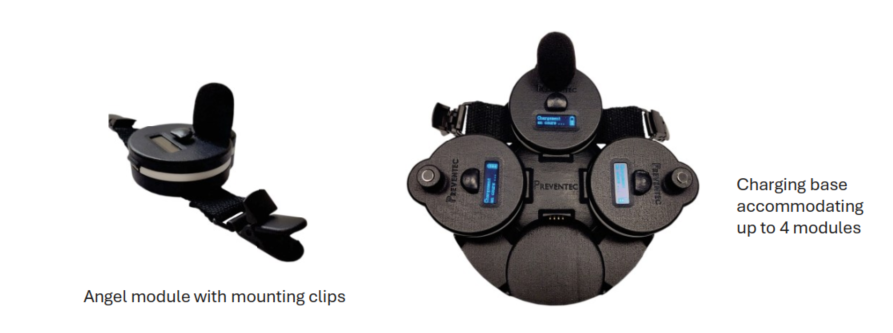

| Supplied With | Base station, power adapter, USB cable |
| Module Dimensions | 60 × 30 mm |
| Charging Base Capacity | Up to four modules |
| Charging Base Dimensions | 140 × 30 mm |
For detailed specifications and compliance information, please visit the manufacturer's product page or download the resources in the Resources tab.
