m+p VibRunner Modular DAQ System for Vibration & Acoustic Testing
MP-VIBRUNNER
The m+p VibRunner Modular Data Acquisition (DAQ) system by m+p international is a professional-grade, 19-inch rack-mountable solution designed for advanced vibration, noise, and structural testing in demanding industrial and research environments. Engineered for precision, scalability, and flexibili...
Companion Software Included
Works seamlessly with PQ Analyst — advanced software for real-time FFT, spectrogram, octave analysis, and sound level measurement.
In-Depth Overview
The m+p VibRunner Modular Data Acquisition (DAQ) system by m+p international is a professional-grade, 19-inch rack-mountable solution designed for advanced vibration, noise, and structural testing in demanding industrial and research environments. Engineered for precision, scalability, and flexibility, the VibRunner supports up to 24 analog inputs and 12 analog outputs per unit, augmented by 8 digital inputs and 8 digital outputs. Multiple units can be daisy-chained and synchronized via high-speed 1 Gbit/s Ethernet, enabling the configuration of systems with several hundred measurement channels suitable for comprehensive acoustic and vibration analysis.
Key Features & Technical Specifications
- High sample rates of 102.4 kHz and 204.8 kHz to capture fine vibration and sound details
- Modular architecture supporting IEPE sensors, voltage inputs, strain gauge and bridge measurements
- Robust Ethernet, USB, and OPC interfaces for seamless integration with third-party test environments
- Compatibility with m+p VibControl, m+p Analyzer, and m+p Coda software suites for data acquisition, visualization, and advanced frequency domain analysis
- Rack-mount styling for space-efficient laboratory or industrial setups
Applications & Use Cases
- Noise, Vibration, and Harshness (NVH) testing in automotive, aerospace, and transportation industries
- Building acoustics and structural health monitoring to assess sound insulation and identify potential faults
- Environmental noise monitoring for compliance with local regulatory standards
- Manufacturing quality control to detect mechanical defects via vibration analysis
Standards Compliance: The m+p VibRunner system adheres to international standards such as IEC 61672 for sound level meters, ISO 10816 for vibration measurement guidelines, and ANSI specifications where applicable, ensuring reliable and accurate results across multiple industrial applications.
Target Audience: This modular DAQ system is ideal for engineers, researchers, and acoustic consultants requiring a professional, scalable, and adaptable platform for comprehensive sound level and vibration measurement projects. Laboratories focused on structural testing, automotive R&D departments, aerospace testing facilities, and environmental agencies will benefit from its precision and reliable performance.
For tailored configurations, pricing details, or technical support in Thailand and ASEAN, contact Placid Asia, the authorized distributor and service provider for m+p international systems. Request a quote today to enhance your testing capabilities with the m+p VibRunner Modular DAQ System.
Recommended Companion Software: PQ Analyst
Pair this DAQ device with PLACID PQ Analyst — an integrated software platform for real-time acoustic and vibration signal acquisition, visualization, and analysis. Together they form a complete measurement and analysis chain for R&D, university research, and industrial testing.
- Real-time FFT spectrum analysis up to the full bandwidth of your DAQ
- Spectrogram (waterfall) display for time-frequency visualization
- 1/1 and 1/3 octave band analysis per IEC 61260
- Sound Level Meter module (Leq, Lmax, Lmin, LN) per IEC 61672
- Data export to CSV for post-processing in MATLAB or Python
- Compatible with PQ401-A, PQ401-B, PQ441-C, and PQ1601
Interested in this product?
Get more information about pricing, availability, and technical support
Related Products
View All →
PQ-ANALYST
PLACID PQ Analyst Sound and Vibration Tool
PLACID PQ Analyst is acquisition and analysis software for sound and vibration measurement. It provides real-time FFT, spectrogram display and octave analysis, together with a sound level meter module offering A, C and Linear frequency weighting to IEC. Results export to CSV for reporting and further processing. PQ Analyst drives the PLACID PQ1601 and PQ401 acquisition hardware, turning a laptop and a measurement microphone or accelerometer into a complete analysis chain. Placid Asia is the authorized distributor for Thailand and ASEAN.
PQ441-C

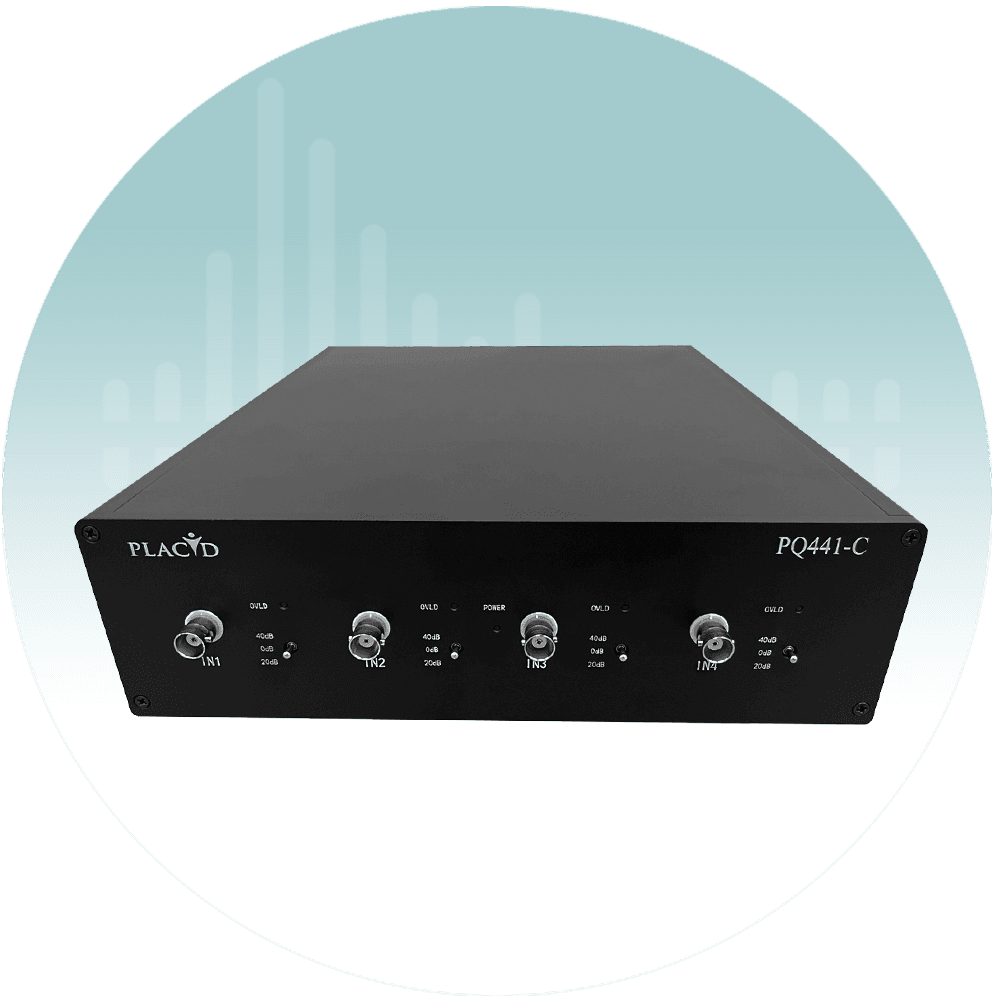

PLACID PQ441-C 4-Channel Signal Conditioner
The PLACID PQ441-C is a four-channel signal conditioner and data acquisition unit for sound and vibration measurement. A signal conditioner supplies sensor power, sets gain and filters the signal before digitisation, which is what allows microphones, accelerometers and plain voltage sources to be mixed on one measurement without each needing its own front end. Four channels is the practical minimum for intensity probes, impedance tube work to ISO 10534-2 and small modal setups. The PQ441-C runs with PLACID PQ Analyst software for real-time FFT, spectrogram and octave analysis with CSV export. Full specifications are provided with the quotation. Placid Asia is the authorized distributor for Thailand and ASEAN.
PQ1601

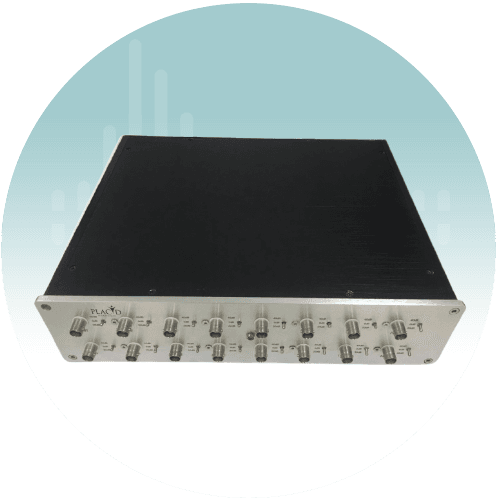

PLACID PQ1601 16-Channel USB DAQ
The PLACID PQ1601 is a 16-channel BNC data acquisition unit connected over USB. Selectable gain of x1, x10 and x100 and a 4 mA IEPE supply on every channel allow microphones, accelerometers and plain voltage signals to be mixed in one measurement. Sampling runs from 1 to 100 kHz with 112 dB of dynamic range. It is the acquisition front end for the PLACID PQ Analyst software and suits multi-point sound and vibration measurement, sound power arrays and laboratory work. Placid Asia is the authorized distributor for Thailand and ASEAN.
PQ401-AB

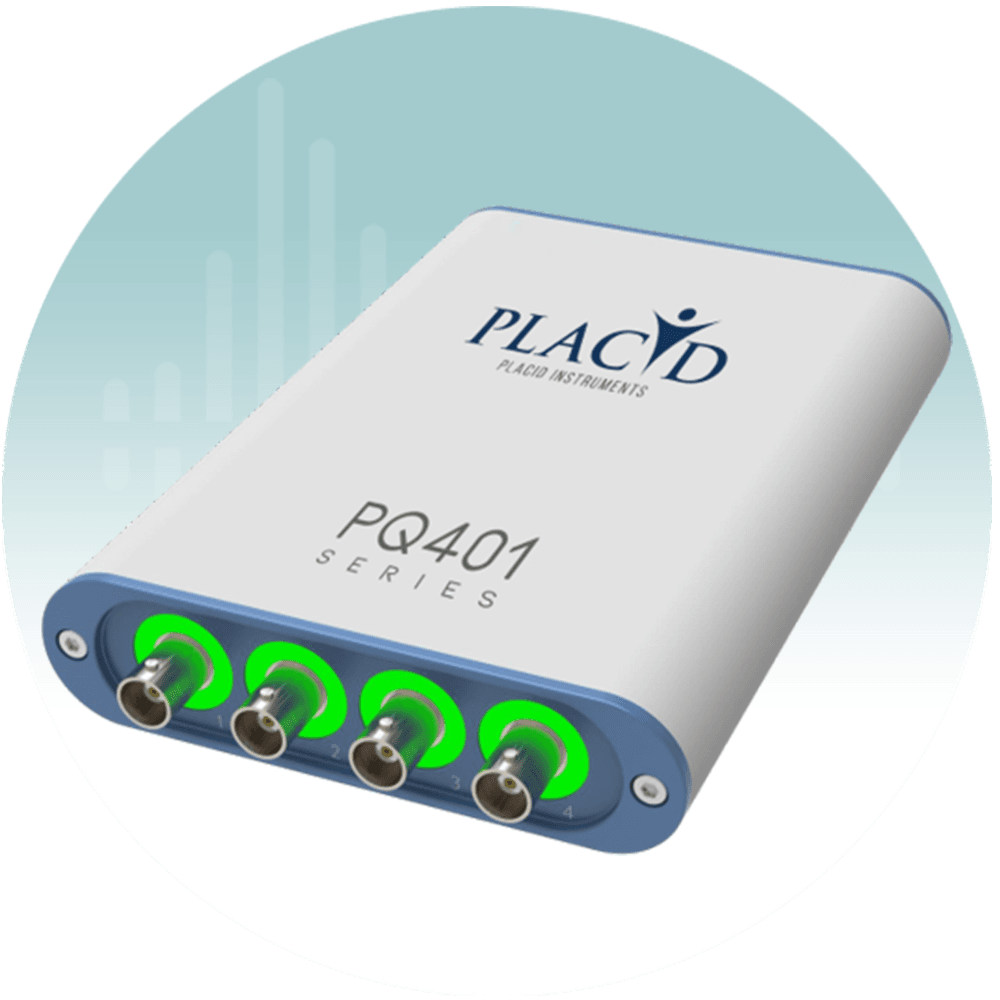

PLACID PQ401-A/B Four-Channel Data Acquisition Device | 24-bit DAQ with SDK for MATLAB, C++, C#, Python
