Microphones

PLACID Instruments measurement microphones, preamplifiers and USB microphone sets for acoustic measurement to IEC 61672 Class 1 and Class 2.

Professional Grade
Factory Calibrated
Local Support

Certified Equipment

All products meet international standards with factory calibration certificates

Expert Guidance

Free consultation to help you select the right equipment for your application

Complete Support

Training, calibration, and technical support throughout the product lifecycle

All Microphones

Microphones
PDF

PLACID-PAH-02

PLACID PAH-02 HATS Head & Torso Simulator | IEC 60318-4 Compliant Acoustic Measurement

The PLACID PAH-02 Head and Torso Simulator (HATS) is an advanced professional-grade acoustic measurement device designed to accurately replicate the acoustic properties of an average adult human head and torso. Engineered by PLACID Instruments, this simulator enables precise binaural sound measurements and realistic speech simulation critical for research and product testing. Key benefits of the PLACID PAH-02 include high fidelity ear simulators compliant with IEC 60318-4 standards, delivering exceptional frequency response from 50 Hz to 16 kHz within ±2 dB referenced to 250 Hz. With a wide dynamic range of 25 to 140 dB and a low noise floor below 30 dB SPL (A-weighted), it guarantees reliable measurement results in various acoustic environments. The sensitivity of -39 dB re 1 V/Pa and IEPE (24 V, 4 mA) BNC outputs facilitate seamless integration with professional acoustic analyzers. The integrated mouth simulator meets IEEE 269 and ITU-T Rec. P.51 standards, delivering sound pressure levels exceeding 110 dB re 20 µPa in the frequency range of 100 Hz to 10 kHz. Distortion levels remain impressively low, under 1.5% above 200 Hz and below 1% above 300 Hz, making it ideal for precise speech and audio device evaluation. Technical specifications include a compact size of 356 × 179 × 300 mm and lightweight construction at 3.1 kg, ensuring portability for field and laboratory applications. The unit is supplied with an individual calibration certificate, while ISO/IEC 17025 accredited calibration services are available upon request, ensuring traceability and compliance for industrial and research-grade measurements. Applications span a broad range of industries, including automotive Noise, Vibration, and Harshness (NVH) testing, aerospace acoustic analysis, building acoustics, environmental noise monitoring, telecommunications device evaluation, hearing aid calibration, and binaural audio recording. The PLACID PAH-02 offers unparalleled accuracy for engineers, acoustic researchers, consultants, and quality control professionals demanding reliable and repeatable acoustic test data. Compliant with internationally recognized IEC and IEEE standards, the PLACID PAH-02 supports rigorous quality assurance and product development workflows in both R&D and production environments. To learn more about the PLACID PAH-02 Head and Torso Simulator, request a personalized quote or schedule a demonstration by contacting Placid Asia, the authorized distributor. Elevate your acoustic measurement precision today with PLACID Instruments’ trusted HATS solution.

Microphones
PDF

PCR11

PLACID PCR11 Class 1 Phantom Powered 1" Measurement Microphone, 60 mV/Pa

The PLACID PCR11 is a professional-grade 1-inch free-field measurement microphone designed for precision acoustic analysis and sound level measurement. Featuring IEC Class 1 certification, the PCR11 meets the highest international standards (IEC 61094-4) for sound measurement microphones, making it ideal for engineers, researchers, and consultants requiring accurate and reliable acoustic data. Powered by standard 48 V phantom power (P48, IEC 61938), this microphone delivers a sensitivity of 60 mV/Pa and operates across a wide frequency range from 20 Hz to 20 kHz. Its built-in 3-pin XLR output ensures seamless connection to mixers, audio interfaces, or analyzers without the need for additional power supplies. With an impressive maximum input sound pressure level of 130 dB (1% THD at 1 kHz) and an ultra-low self-noise of 18 dB(A), the PLACID PCR11 excels in environments requiring high fidelity monitoring such as quiet rooms, concert halls, or low-level sound recording tests. This device is perfect for a variety of industrial and scientific acoustics applications including Noise, Vibration & Harshness (NVH) testing in automotive and aerospace sectors, building acoustics, environmental noise monitoring, manufacturing quality control, and research laboratories. Each PLACID PCR11 microphone is shipped with a factory calibration certificate, ensuring traceability and confidence in your measurements. Additionally, ISO/IEC 17025 accredited third-party calibration certificates are available upon request for projects requiring enhanced quality assurance. Manufactured with industrial-grade components, the PCR11 provides robust performance and durability ideal for demanding field or lab environments. Whether you are performing detailed frequency analyses, sound pressure level assessments, or vibration-related acoustic testing, the PLACID PCR11 is engineered to deliver unmatched accuracy. Contact us today to request a quote or learn more about how the PLACID PCR11 Class 1 measurement microphone can enhance your acoustic measurement capabilities.

Microphones
PDF

PCR22

PLACID PCR22 Class 1 Phantom-Powered 1/2" Measurement Microphone, 40 mV/Pa

The PLACID PCR22 is a professional-grade 1/2" IEC Class 1 free-field measurement microphone designed for highly accurate acoustic measurements. Powered by standard 48 V phantom power (P48, IEC 61938), the PCR22 connects easily via its 3-pin XLR output, eliminating the need for an external power supply and enabling seamless integration with mixers, audio interfaces, and analyzers. Engineered for precision, the PLACID PCR22 offers a flat frequency response from 20 Hz to 20 kHz, a sensitivity of 40 mV/Pa, and a low self-noise level of 18 dB(A). It can handle sound pressure levels up to 140 dB with 1% total harmonic distortion (THD) at 1 kHz, making it suitable for a wide range of acoustic environments—from quiet rooms to high-intensity noise sources. This Class 1 measurement microphone complies with strict international standards including IEC 61094-4 for microphone specifications and IEC 61938 for phantom power compatibility. Each microphone includes a factory calibration certificate, with optional ISO/IEC 17025 accredited third-party calibration certification available upon request. The PLACID PCR22 is ideal for applications in automotive NVH testing, aerospace acoustic analysis, environmental noise monitoring, building acoustics assessments, manufacturing quality control, and research laboratories. Engineers, researchers, acoustical consultants, and sound professionals will benefit from its precision, durability, and ease of use. Key features include: - IEC Class 1 free-field measurement accuracy - Phantom power operation (48 V / P48 compliant) - Frequency range: 20 Hz – 20 kHz - Sensitivity: 40 mV/Pa - Self-noise: 18 dB(A) - Maximum SPL: 140 dB@1% THD - 3-pin XLR output connector - Factory calibration certificate included Whether conducting complex noise and vibration analysis or environmental acoustic surveys, the PLACID PCR22 ensures reliable and repeatable results that meet professional industry standards. For custom configurations, pricing, or technical support, contact our sales team today. Enquiries receive a response within 1–2 working days.

Microphones
PDF

PCR24

PLACID PCR24 Class 1 1/2" Phantom-Powered Measurement Microphone – 12 mV/Pa, 20 Hz-40 kHz

The PLACID PCR24 is a high-precision 1/2 inch IEC Class 1 free-field measurement microphone designed for professional acoustic and vibration analysis. Powered by standard 48 V phantom power (IEC 61938 compliant), this Phantom-powered microphone features a robust 3-pin XLR connector for seamless integration with mixers, audio interfaces, and acoustic analyzers without requiring additional power supply units. With an extended frequency response from 20 Hz to 40 kHz, the PCR24 excels in capturing detailed acoustic data, making it ideal for applications that require accurate high-frequency measurements beyond the audible range. The microphone offers a sensitivity of 12 mV/Pa and a maximum sound pressure level handling up to 155 dB SPL at 1% Total Harmonic Distortion (THD) at 1 kHz, ensuring reliability even in loud environments. Key technical specifications include an ultra-low self-noise level of 20 dB(A), delivering clean signal acquisition suitable for sensitive measurements in automotive NVH (Noise, Vibration, Harshness) testing, aerospace sound analysis, building acoustics evaluation, and environmental noise monitoring. Every unit is supplied with a factory calibration certificate, and ISO/IEC 17025 accredited calibration is available via third-party laboratories upon request, assuring traceable and repeatable results. Engineers, acoustic consultants, researchers, and quality control specialists rely on the PLACID PCR24 for precise sound level and frequency analysis across manufacturing, environmental monitoring, laboratory testing, and product development sectors. Designed for professional-grade accuracy, this microphone supports compliance with international standards including IEC and ISO measurement protocols. Enhance your acoustic measurement capabilities with the PLACID PCR24’s rugged construction, high fidelity, and broad frequency coverage. Contact us today to request a quote or discuss your specific measurement needs—our expert team is ready to assist within 1-2 working days. Key Benefits: - IEC Class 1 free-field measurement accuracy - Wide frequency range: 20 Hz to 40 kHz for extended acoustic analysis - Phantom-powered with 3-pin XLR output for ease of connectivity - Low self-noise and high SPL handling (155 dB) for versatile use cases - Factory calibrated with optional ISO/IEC 17025 accredited certificate Applications: - Automotive NVH testing - Aerospace acoustic analysis - Building and architectural acoustics - Environmental noise monitoring - Manufacturing and quality control sound measurements Standards: - IEC 61672, IEC 61938 compliant - Calibration traceable to ISO/IEC 17025 standards Target Audience: - Acoustic engineers - Research institutions - Environmental consultants - Quality control professionals Request your personalized quote today and experience the precision of PLACID Instruments' PCR24 Class 1 measurement microphone for your acoustic testing requirements.

Microphones
PDF

PCR30

PLACID PCR30 Class 2 Phantom-Powered Microphone, 1/2", 30 mV/Pa

The PLACID PCR30 is a 1/2" IEC Class 2 free-field measurement microphone from the PLACID Phantom PCR series. It runs on standard 48 V phantom power (P48, IEC 61938) and has a 3-pin XLR output, so it connects directly to a mixer, audio interface or analyser with phantom power, with no separate microphone power supply. It covers 20 Hz to 20 kHz with a typical sensitivity of 30 mV/Pa, a maximum input level of 130 dB (1 % THD at 1 kHz) and 22 dB(A) self-noise. A Class 2 1/2" microphone for general sound measurement and recording tests where Class 2 accuracy is sufficient. A factory calibration certificate comes with every microphone; an ISO/IEC 17025 accredited certificate is available via a third-party laboratory on request. Enquiries are answered within 1–2 working days.

Microphones
PDF

PCR45

PLACID PCR45 Class 1 Phantom-Powered Microphone, 1/4", 4 mV/Pa

The PLACID PCR45 is a 1/4" IEC Class 1 free-field measurement microphone from the PLACID Phantom PCR series. It runs on standard 48 V phantom power (P48, IEC 61938) and has a 3-pin XLR output, so it connects directly to a mixer, audio interface or analyser with phantom power, with no separate microphone power supply. It covers 20 Hz to 50 kHz with a typical sensitivity of 4 mV/Pa, a maximum input level of 160 dB (1 % THD at 1 kHz) and 30 dB(A) self-noise. The 1/4" capsule reaches 50 kHz and 160 dB, for very high sound levels, high-frequency work and measurements close to the source. A factory calibration certificate comes with every microphone; an ISO/IEC 17025 accredited certificate is available via a third-party laboratory on request. Enquiries are answered within 1–2 working days.

Microphones
PDF

PLACID-PMNU21

PLACID PMNU21 Class 1 USB Microphone

The PLACID PMNU21 is a Class 1 USB measurement microphone to IEC 61672. It covers 20 Hz to 20 kHz with a nominal sensitivity of 50 mV/Pa, a 26 to 126 dB measuring range and 48 kHz 16-bit digitisation inside the microphone. Because it needs no separate preamplifier, power supply or acquisition card, it turns any laptop into a Class 1 measurement chain, which suits field surveys, teaching laboratories, production line checks and long unattended recordings. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PLACID-PMP20

PLACID PMP20 Class 1 Microphone, 20 Hz-40 kHz

The PLACID PMP20 is a 1/2 inch Class 1 free-field measurement microphone to IEC 61094-4, individually calibrated. It covers 20 Hz to 40 kHz with a dynamic range of 25 to 155 dB(A) and a nominal sensitivity of 12 mV/Pa. The wide upper frequency limit and high maximum level suit ultrasonic work, machinery and product noise testing and sound power measurement, while the low noise floor allows quiet environments to be measured without correction. Supplied with an individual calibration chart. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PMP21

PLACID PMP21 Class 1 Microphone, 50 mV/Pa

The PLACID PMP21 is a 1/2 inch Class 1 free-field measurement microphone to IEC 61094-4, individually calibrated. It covers 20 Hz to 20 kHz with a dynamic range of 16 to 146 dB(A) and a nominal sensitivity of 50 mV/Pa. The high sensitivity and 16 dB(A) noise floor make it the standard choice for environmental noise monitoring, building acoustics and occupational noise assessment, where levels are low and the full audio band is required. Supplied with an individual calibration chart. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PMP25

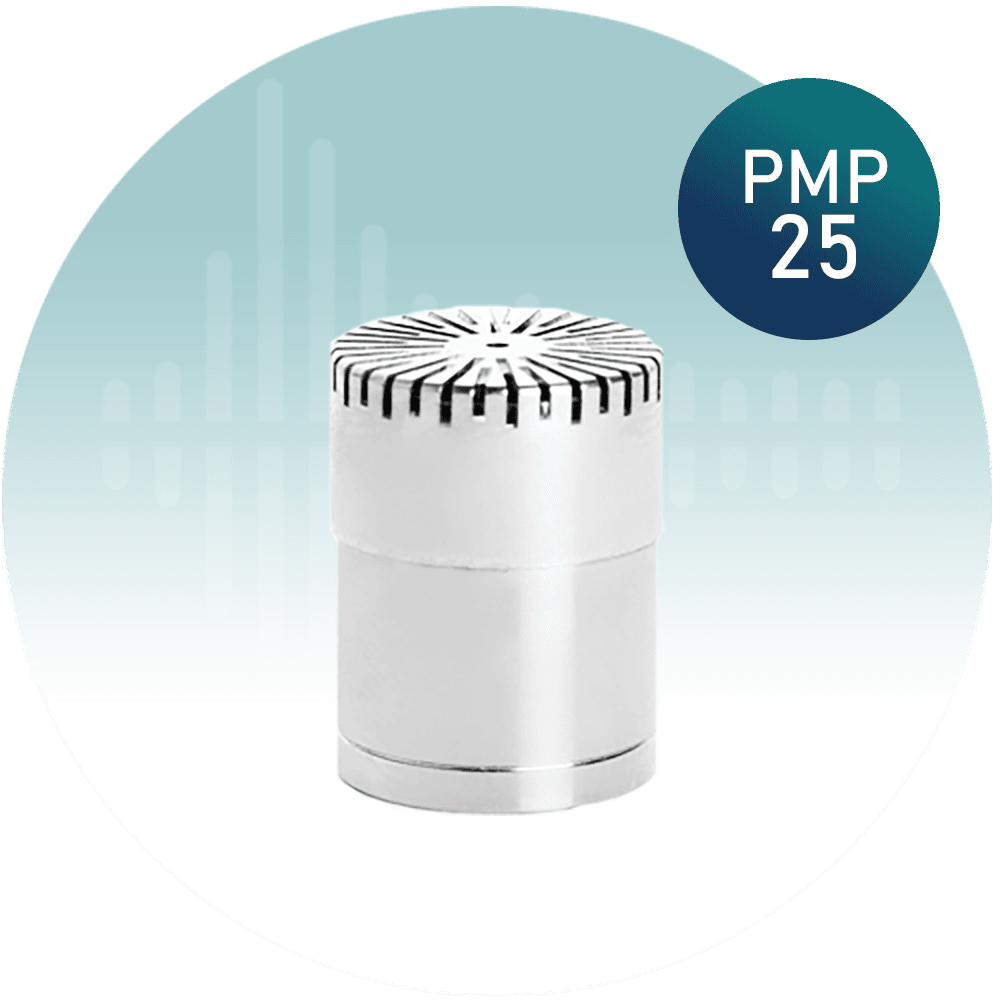

PLACID PMP25 Random-Incidence Microphone

The PLACID PMP25 is a 1/2 inch prepolarized random-incidence measurement microphone with a nominal sensitivity of 50 mV/Pa. Its inherent noise is below 16 dB(A) and total harmonic distortion stays under 3% across the working range. Random-incidence response is the correct choice for a diffuse sound field, so the PMP25 suits reverberation room work, building acoustics to ISO 16283 and indoor measurement where sound arrives from all directions. Prepolarized operation removes the need for a 200 V supply. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PMP41

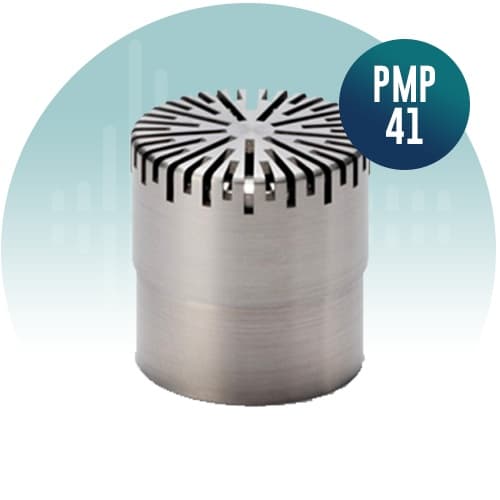

PLACID PMP41-A Class 1 Microphone, 7 mm

The PLACID PMP41-A is a 7 mm Class 1 WS3F measurement microphone to IEC 61094. It covers 20 Hz to 70 kHz with a dynamic range of 34 to 164 dB(A) and a nominal sensitivity of 4 mV/Pa. The small diaphragm disturbs the sound field very little and reaches a high upper frequency limit, which suits ultrasonic measurement, near-field and in-duct work, high-level engine and aerospace testing, and microphone arrays where physical size matters. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PLACID-PNP21

PLACID PNP21 1/2in Microphone Preamplifier

The PLACID PNP21 is a 1/2 inch microphone preamplifier with a frequency response of 5 Hz to 100 kHz and self-noise below 2.0 microvolts. It is available with a BNC or TNC connector and accepts standard 1/2 inch measurement microphones. The very low self-noise preserves the noise floor of a Class 1 capsule, so the combination can be used for low-level environmental and building acoustics measurement as well as high-frequency and ultrasonic work. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PLACID-PNP22

PLACID PNP22 1/2in Microphone Preamplifier

The PLACID PNP22 is a 1/2 inch microphone preamplifier with a frequency response of 5 Hz to 100 kHz and self-noise below 2.0 microvolts. It accepts standard 1/2 inch measurement microphones and preserves the noise floor of a Class 1 capsule across the full audio band and well into the ultrasonic range. Typical use is environmental noise monitoring, building acoustics, sound power measurement and laboratory work where a long cable run is needed between microphone and analyser. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PLACID-PNP41

PLACID PNP41 1/4in Microphone Preamplifier

The PLACID PNP41 is a 1/4 inch microphone preamplifier with a frequency response of 5 Hz to 100 kHz and self-noise below 2.5 microvolts. It is matched to 1/4 inch capsules such as the PMP41-A, keeping the assembly physically small so that it disturbs the sound field as little as possible. That suits near-field and in-duct measurement, microphone arrays, ultrasonic work and high-level testing where a 1/2 inch assembly would be too large. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PNV21

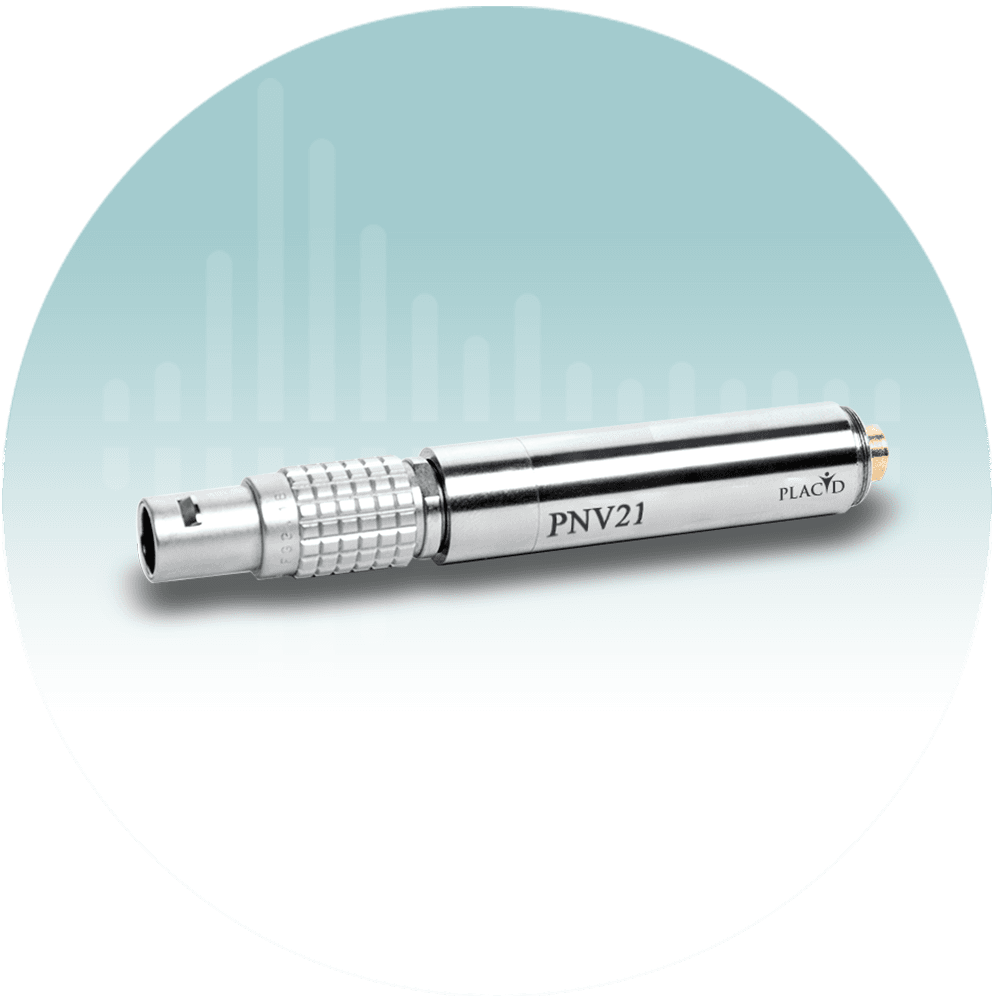

PLACID PNV21 1/2in Low-Noise Preamplifier

The PLACID PNV21 is a 1/2 inch microphone preamplifier built for low self-noise and a wide dynamic range, so that neither the quietest nor the loudest part of a measurement is limited by the preamplifier rather than by the microphone. It accepts standard 1/2 inch measurement capsules and is used where one chain has to cover both very low background levels and high peaks, such as environmental monitoring near intermittent sources, and vehicle and machinery testing. Placid Asia is the authorized distributor for Thailand and ASEAN.

Microphones
PDF

PLACID-POFM-01

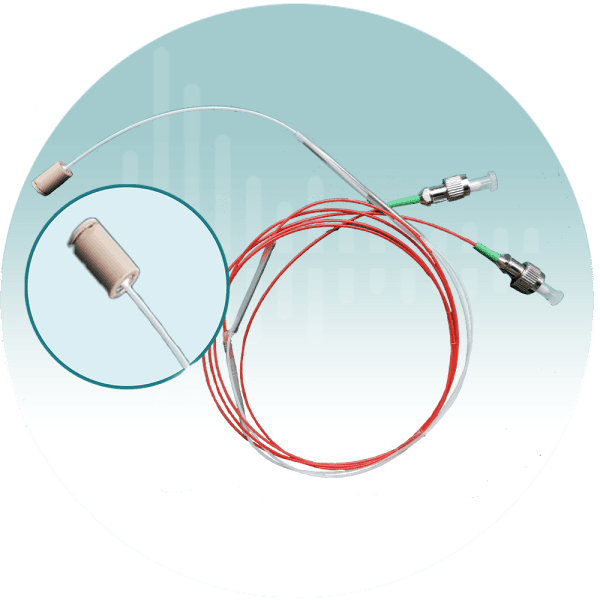

PLACID POFM-01 Fibre Optic Microphone

The PLACID POFM-01 is a fibre optic microphone system with total immunity to electromagnetic and radio frequency interference. Sensitivity is 200 mV/Pa over 3.15 Hz to 6 kHz with 114 dB of dynamic range. The sensor head is passive and entirely non-metallic and carries no electrical energy at the measurement point, which makes it intrinsically safe by design for MRI scanner rooms, ATEX and IECEx hazardous areas, high-voltage substations and nuclear facilities. The optical fibre transmits the signal up to 2 km without amplification. Placid Asia is the authorized distributor for Thailand and ASEAN.
