Vibration Analysis & Testing
การวิเคราะห์และทดสอบการสั่นสะเทือน
Complete vibration measurement, analysis, and testing services for structural dynamics, machinery diagnostics, and predictive maintenance programs. Our solutions include modal analysis, operating deflection shape (ODS) testing, machinery condition monitoring, and human exposure assessment. Advanced multi-channel data acquisition systems with high-precision accelerometers and sophisticated analysis software help engineers optimize designs, predict failures, and ensure safety compliance.
บริการวัด วิเคราะห์ และทดสอบการสั่นสะเทือนที่สมบูรณ์สำหรับพลศาสตร์โครงสร้าง การวินิจฉัยเครื่องจักร และโปรแกรมการบำรุงรักษาเชิงป้องกัน โซลูชันของเรารวมถึงการวิเคราะห์โมดอล การทดสอบรูปร่างการเสียรูประหว่างการทำงาน (ODS) การตรวจสอบสภาพเครื่องจักร และการประเมินการสัมผัสของมนุษย์ ระบบรับข้อมูลหลายช่องขั้นสูงพร้อมเซ็นเซอร์วัดความเร่งความแม่นยำสูงและซอฟต์แวร์วิเคราะห์ที่ซับซ้อนช่วยให้วิศวกรเพิ่มประสิทธิภาพการออกแบบ คาดการณ์ความล้มเหลว และรับประกันการปฏิบัติตามความปลอดภัย
Typical Applications
Key Benefits
- •Predict equipment failures through early detection of abnormal vibration patterns
- •Optimize preventive maintenance schedules based on actual machine condition
- •Ensure worker safety compliance with whole-body and hand-arm vibration regulations
- •Validate structural designs through experimental modal analysis and FEM correlation
- •Identify resonance issues before they cause catastrophic failure
- •Reduce unplanned downtime and extend equipment lifespan
- •Comprehensive vibration analysis with frequency domain, time domain, and order tracking
Relevant Standards
Our equipment complies with international standards for vibration analysis & testing.
Recommended Products for Vibration Analysis & Testing
7 products available for this application
MMF(METRAM-VM100
MMF VM100 Handheld Vibration Analyzer with Triaxial IEPE & FFT
The MMF VM100 by Metra Mess- und Frequenztechnik is a professional-grade handheld vibration analyzer designed for precise, comprehensive on-site vibration condition monitoring and diagnostics. Featuring advanced triaxial IEPE sensor inputs, the VM100 allows simultaneous measurement of acceleration, velocity, and displacement across three axes, providing detailed insights into complex vibration patterns critical for industrial machinery assessment. Equipped with a high-resolution, easy-to-read display and built-in spectral analysis and diagnostic tools, this rugged device supports upgradeable functionalities including FFT spectral analysis and order tracking for enhanced vibration diagnostics. Technical specifications include: triaxial IEPE accelerometer inputs, real-time data acquisition with USB connectivity, support for various vibration parameters (acceleration, velocity, displacement), and modular firmware enhancements. The VM100 complies with international standards such as IEC 61672 and ISO 5349 for vibration measurements and analysis, ensuring reliable, repeatable results for professional users. This vibration analyzer is ideal for multiple industry applications including automotive NVH (Noise, Vibration, and Harshness) testing, aerospace structural health monitoring, manufacturing quality control, building acoustics evaluations, environmental vibration assessments, and rotating machinery condition monitoring. Researchers, engineers, maintenance specialists, and consultants in sectors requiring high-accuracy vibration data will benefit from the VM100’s advanced capabilities and user-friendly interface. Its rugged handheld design supports efficient field measurements under harsh industrial conditions, with data export and report generation facilitated via USB connection. Compared to MMF’s VM2x series, the VM100 offers enhanced multi-axis measurement capabilities for deeper vibration diagnostics. Request a quote today to upgrade your vibration monitoring toolkit with the MMF VM100 — an advanced solution engineered for precise industrial vibration analysis and long-term machine health management.
MMF(METRAM-VM23
MMF VM23 Handheld Vibration Meter with Frequency & Displacement Measurement
The MMF VM23 Vibration Meter is a professional-grade handheld device designed for accurate vibration measurement and advanced frequency analysis. Building on the trusted VM22 platform, the VM23 extends capabilities by integrating displacement measurement and comprehensive frequency band analysis, making it an indispensable instrument for vibration diagnostics in diverse industrial and research settings. Equipped to measure vibration velocity within 0.1 to 1000 mm/s, the MMF VM23 covers multiple frequency ranges from 2 Hz up to 1000 Hz. It provides both true RMS and peak-to-peak readings to ensure precise velocity data. Additionally, the device measures vibration displacement from 0.01 to 60 mm across selectable frequency bands including 2-1000 Hz and narrower ranges, allowing versatile application in both high and low-frequency environments. Key technical features include a high-resolution 512-line FFT spectrum analyzer for accurate dominant frequency identification, a graphical trend display with VMID points to monitor vibration changes over time, and onboard memory capacity for up to 16,000 measurement records. The vivid colored OLED display enhances readability in various lighting conditions. USB connectivity supports easy transfer and documentation of measurement data. Designed for compliance with ISO 20816-1 and VDI 3832 standards, the MMF VM23 meets international criteria for machine vibration diagnostics and condition monitoring. Its ±5% ±2 digit measurement accuracy ensures reliable data for critical maintenance decisions. Applications span a wide array of industries including automotive Noise, Vibration, and Harshness (NVH) testing, aerospace vibration analysis, manufacturing quality control, building acoustics assessment, environmental vibration monitoring, and vibratory conveyor diagnostics. This versatility makes it a top choice for engineers, researchers, consultants, and maintenance professionals aiming to optimize equipment performance and prolong machinery life. Choose the MMF VM23 for a rugged, user-friendly, and highly precise vibration measurement tool. Request a quote today and enhance your vibration analysis capabilities with MMF’s trusted technology.
MMF(METRAM-VM22
MMF VM22 Vibration Meter - Handheld ISO 10816 Machine Condition Monitor
The MMF VM22 Vibration Meter by Metra Mess- und Frequenztechnik is a professional-grade, handheld instrument engineered for precise machine condition monitoring and vibration analysis. Designed to meet stringent ISO 10816 standards, the VM22 offers reliable vibration velocity measurements ranging from 0.1 to 1000 mm/s, covering a frequency spectrum of 10 to 1000 Hz. This device outputs accurate true RMS values with an accuracy tolerance of ±5% ±2 digits, ensuring trustworthy data critical for predictive maintenance and machinery diagnostics. Equipped with advanced electronic VMID point detection, the unit automates measurement point identification, streamlining routine inspections. The MMF VM22's internal memory can store up to 16,000 measurement records, which can be easily exported via a USB interface to a PC. Data visualization is enhanced with its vibrant colored OLED display and trend graph functionalities to analyze historical vibration data for early detection of mechanical faults. Ideal for route-based vibration measurements on a wide range of rotating and reciprocating machinery, the VM22 integrates seamlessly with PC software supporting the MIMOSA (ISO 13373-1) standard for condition monitoring data archiving. Its robust design powered by three AAA batteries delivers 8 to 12 hours of continuous operation in field environments. Beyond industrial machinery diagnostics, the MMF VM22 serves a broad spectrum of applications including automotive NVH (Noise, Vibration, Harshness) testing, aerospace component monitoring, manufacturing quality control, building acoustics assessment, and environmental vibration analysis. Compliance with international standards such as ISO 10816 ensures that engineers, maintenance consultants, and researchers can confidently rely on the VM22 for precise, repeatable vibration measurements. Whether you’re an industrial engineer, a maintenance technician, or a research professional, the MMF VM22 offers the ideal balance of accuracy, portability, and advanced functionality for your vibration measurement needs. Contact us today to request a quote and enhance your predictive maintenance programs with the MMF VM22 Vibration Meter.
PROFOUND-VIBRA-5+
Profound VIBRA 5+ Advanced Vibration & Acoustic Monitoring System
The Profound VIBRA 5+ is a state-of-the-art vibration and acoustic monitoring system engineered for precision measurement and reliability in professional environments. Designed by Profound, a leader in environmental monitoring solutions, this professional-grade equipment excels in capturing detailed vibration data, sound levels, and frequency analysis for a wide range of applications. Key benefits of the VIBRA 5+ include highly accurate sensors, real-time data processing, and robust construction suitable for challenging industrial and laboratory conditions. Its advanced signal processing algorithms enable noise and vibration specialists to detect subtle acoustic anomalies and structural vibrations with exceptional clarity. Technical features of the VIBRA 5+ encompass multi-axis vibration sensing, integrated sound level meters compliant with IEC 61672 Class 1 standards, and onboard frequency analysis capabilities supporting spectra up to 20 kHz. The device supports continuous data logging, remote monitoring options, and comprehensive software integration compatible with ISO and ANSI measurement frameworks. Applications span automotive NVH (Noise, Vibration, and Harshness) testing, aerospace component verification, manufacturing quality control, building acoustics assessments, and environmental noise monitoring. The VIBRA 5+ helps engineers, researchers, noise consultants, and environmental specialists achieve precise measurement data for product development, regulatory compliance, and operational safety. Compliant with IEC, ISO, and ANSI standards, the Profound VIBRA 5+ guarantees measurement accuracy and reliability for industrial and scientific use. Whether analyzing structural vibration patterns, assessing airborne noise pollution, or performing laboratory quality tests, this equipment delivers trusted performance. Targeted at engineers, acoustic researchers, environmental auditors, and consultants seeking professional measurement tools, the VIBRA 5+ combines advanced technology with intuitive usability. Contact us today for a customized quote and see how the Profound VIBRA 5+ can elevate your acoustic and vibration monitoring capabilities to the next level.
SOFTWARE-FOR-THE-RECORDING-OF-SOUND-AND-VIBRATION

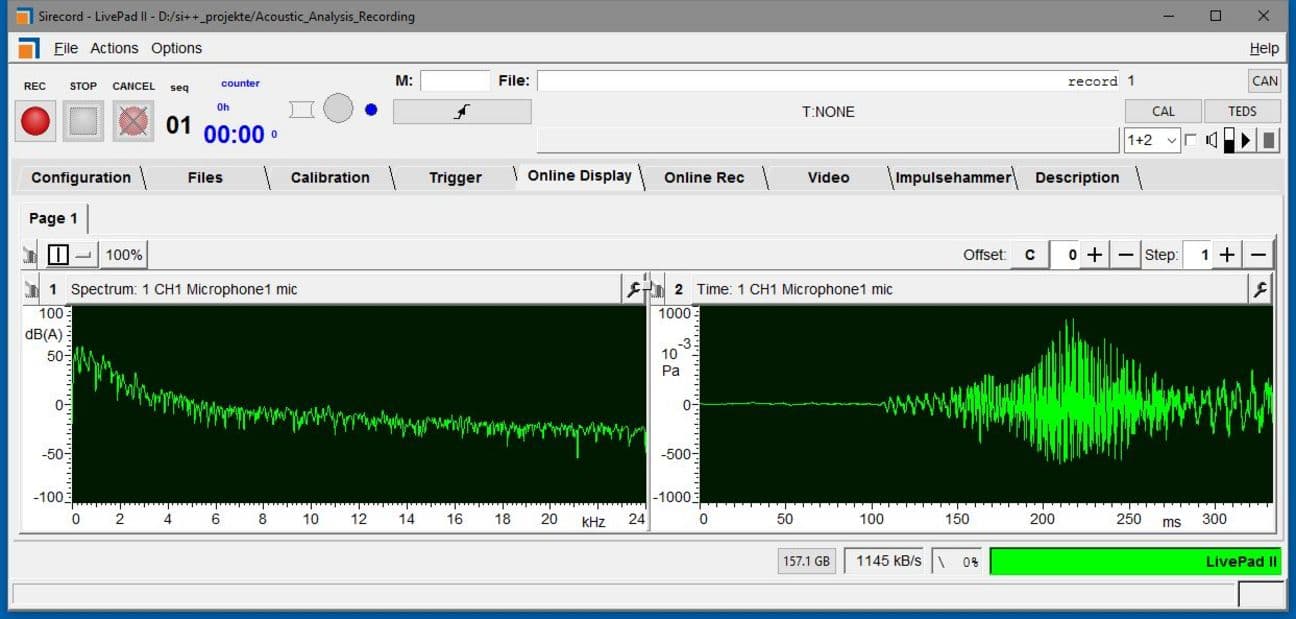

Soundtec Software for Precision Sound & Vibration Recording - Professional Acoustic Measurement
Soundtec Software for the Recording of Sound and Vibration is a cutting-edge, professional-grade acoustic measurement software designed to deliver precise and reliable data for sound and vibration analysis. Engineered for industrial and research applications, this software supports detailed sound level measurement, vibration monitoring, and frequency analysis, enabling users to achieve superior accuracy and consistency across multiple environments. Featuring an intuitive interface and robust data acquisition capabilities, this software integrates seamlessly with a wide range of acoustic sensors and vibration transducers. It supports real-time data capture, advanced signal processing, and comprehensive reporting tools, making it ideal for noise and vibration analysis in sectors such as automotive NVH (Noise, Vibration, and Harshness), aerospace testing, building acoustics, manufacturing quality control, and environmental noise monitoring. The software complies fully with international standards including IEC 61672 for sound level meters, ISO 8041 for human response to vibration measurement, and ANSI S1.11 for octave band analysis, ensuring trustworthy and standardized measurement practices. These compliances make it suitable for environmental consulting, construction project monitoring, and government regulatory submissions. Key technical features include multi-channel synchronized recording, real-time frequency analysis, customizable data logging parameters, and exportable reports compatible with popular data formats for further analysis. Professionals such as acoustic engineers, environmental consultants, researchers, and quality control specialists benefit from the software's accuracy and versatility. Whether you are measuring noise pollution in urban environments, conducting NVH studies on engines, or performing vibration analysis on industrial equipment, Soundtec’s software is engineered to meet the rigorous demands of professional users. Its industrial-grade architecture guarantees durability and scalability for both field and laboratory applications. Enhance the precision of your acoustic and vibration measurements with Soundtec Software for the Recording of Sound and Vibration. Contact us today for a quote and discover how our technology can elevate your measurement capabilities to the next level.
END-OF-LINE-TESTING-FOR-SOUND-AND-VIBRATION
Soundtec End of Line Testing for Sound & Vibration - Precision NVH Measurement
The Soundtec End of Line Testing for Sound and Vibration (END-OF-LINE-TESTING-FOR-SOUND-AND-VIBRATION) is a professional-grade data acquisition solution designed for precise acoustic and vibration measurement across diverse industrial applications. Engineered to deliver consistent and accurate results, this advanced system supports critical quality control and validation tasks in manufacturing, research, environmental consulting, and structural engineering. Key Benefits and Features: - High-precision measurement capabilities for sound level, vibration amplitude, and frequency analysis enable thorough Noise, Vibration, and Harshness (NVH) testing. - Robust design built to meet rigorous professional standards (ISO 9001, IEC 61672 for sound level meters) ensuring reliable, repeatable data. - Compatible with multiple sensor types including accelerometers, microphones, and integrated vibration sensors for versatile data acquisition. - Real-time data processing and analysis facilitate rapid decision-making on production lines and research labs. - User-friendly interface with customizable test parameters suitable for complex acoustic environments. - Comprehensive software support allowing detailed reporting, data export, and compliance documentation. Applications: This system is ideally suited for automotive NVH analysis, aerospace component testing, industrial manufacturing quality control, building acoustics assessment, environmental noise monitoring, and architectural vibration evaluation. Its high-resolution measurement capabilities support researchers, engineers, and consultants focused on detecting and mitigating unwanted noise and vibration issues. Standards Compliance: The Soundtec End of Line Testing system adheres to international standards including IEC 61672 for sound level meters, ISO 10816 for vibration measurement, and ANSI/ASA S1.4 for acoustical terminology, ensuring industry-recognized accuracy and reliability. Target Audience: This solution is optimized for professional engineers, acoustic researchers, product quality managers, environmental consultants, and stress analysts who require industrial-grade performance and precision in acoustic and vibration testing. Request a Quote: Elevate your acoustic and vibration testing processes with Soundtec’s advanced end of line testing solution. Contact us today to request a personalized quote and discover how our technology can optimize your quality assurance and R&D projects.
VA-14
Norsonic VA-14 Vibration Analyzer – Professional Acoustic & Vibration Meter
The Norsonic VA-14 Vibration Analyzer is a professional-grade instrument engineered for precise vibration and acoustic measurements across multiple industries. Designed to deliver high accuracy and reliable data, the VA-14 is ideal for machinery diagnostics, structural and environmental vibration analysis, and predictive maintenance programs. Whether you work in automotive NVH testing, aerospace engineering, manufacturing quality control, or building acoustics, the VA-14 offers advanced features for comprehensive frequency and vibration analysis. Key Benefits: - High-precision vibration measurement with wide dynamic range - Integrated sound level and frequency analysis capabilities - Robust, durable design suitable for demanding industrial environments - Intuitive user interface with advanced data logging - Compatibility with international standards including IEC 61094, ISO 10816, and ANSI S2.41 Technical Features and Specifications: - Frequency range: 0.5 Hz to 10 kHz for accurate vibration profiling - Vibration measurement types: acceleration, velocity, and displacement - Real-time FFT and octave band analysis for detailed spectral insights - High-resolution data capture with noise floor < 20 µg - Wireless connectivity options and PC software integration Applications: The VA-14 is widely utilized in noise, vibration, and harshness (NVH) testing in automotive and aerospace sectors, structural health monitoring in civil engineering projects, environmental vibration monitoring near sensitive installations, and quality control in manufacturing processes. Its adaptability makes it perfect for consultants, industrial maintenance teams, research laboratories, and environmental agencies. Standards Compliance: The VA-14 complies with key international measurement standards such as IEC 61094 for sound measuring equipment, ISO 10816 for vibration severity assessment, and ANSI S2.41 for measurement instrumentation, ensuring validated and repeatable results. Target Audience: Engineers, acoustic researchers, maintenance specialists, environmental consultants, and quality assurance professionals will benefit from the VA-14’s accurate, consistent data output and rugged design. Request a Quote: Experience the precision and reliability of the Norsonic VA-14 Vibration Analyzer. Contact us today for a personalized quote and elevate your acoustic and vibration measurement capabilities to the professional level.
About Vibration Analysis & Testing Equipment
Vibration analysis covers a broad range of applications: structural dynamics testing (modal analysis, frequency response functions), machinery condition monitoring (ISO 10816/20816), human whole-body vibration exposure assessment (ISO 2631-1), hand-arm vibration measurement (ISO 5349-1), seismic vibration monitoring, and production quality control. Equipment spans precision accelerometers (ICP®/IEPE, charge-mode), multi-channel signal conditioners, portable FFT analyzers, and software platforms including VibSoft and SoundPlan. Placid Asia distributes SPEKTRA, MMF, and PLACID-branded vibration instruments across ASEAN.
Recommended Instruments
PLACID PLV-Series Vibration Meters
Portable vibration meters for machinery ISO 10816 checks and human vibration ISO 2631/5349
SPEKTRA CV-Series Accelerometer Calibrators
Primary and secondary calibration of accelerometers per ISO 16063
MMF Accelerometers
Industrial and laboratory accelerometers, ICP® and charge-output, 0.1 Hz–40 kHz
PLACID DAQ Systems
Multi-channel simultaneous data acquisition for modal testing and ODS analysis
Norsonic Nor139 / Nor140
Sound and vibration analyzer for combined acoustic and vibration measurements
Applicable Standards
Frequently Asked Questions
What is the difference between ISO 10816 and ISO 20816 for machinery vibration?
ISO 10816 (older series) and ISO 20816 (replacement) both define vibration severity criteria for rotating machinery. ISO 20816 consolidates and extends the coverage to new machine types. Both use velocity RMS (mm/s) as the primary metric with zone-based severity classification.
What equipment is required for ISO 2631-1 whole-body vibration assessment?
ISO 2631-1 requires a triaxial seat-pad accelerometer (e.g. MMF KS943B), a vibration meter or data acquisition system with frequency weighting filters (Wk, Wd, Wg), and software to calculate A(8) daily exposure values. The PLACID PLV-3010 includes built-in ISO 2631 weighting filters.
Can modal analysis identify structural resonances in buildings?
Yes. Experimental modal analysis (EMA) uses impact hammers or shakers to excite structures and multi-channel accelerometers to measure frequency response functions (FRFs). Natural frequencies, damping ratios, and mode shapes are extracted to identify resonances and guide structural modifications.
